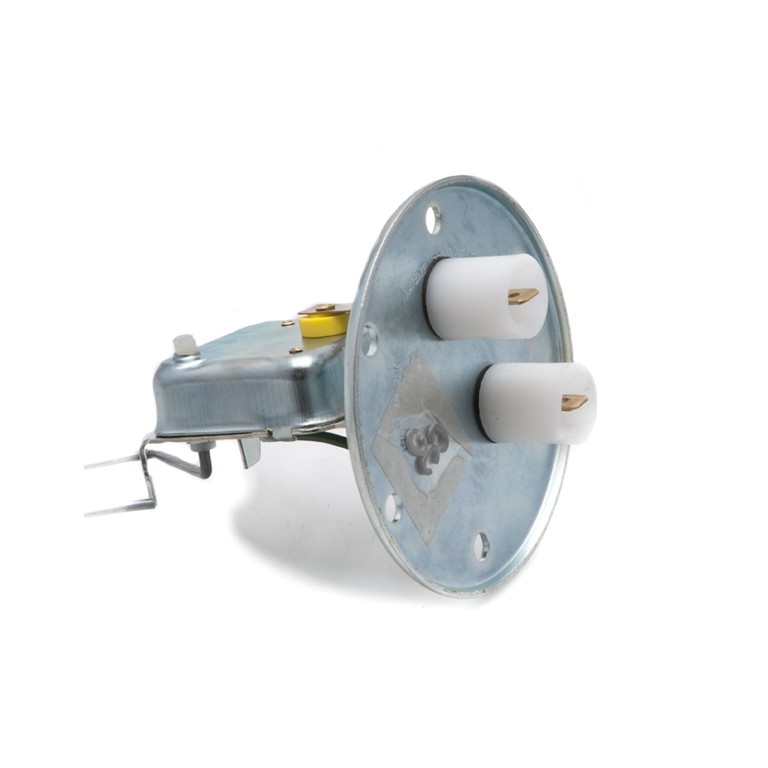

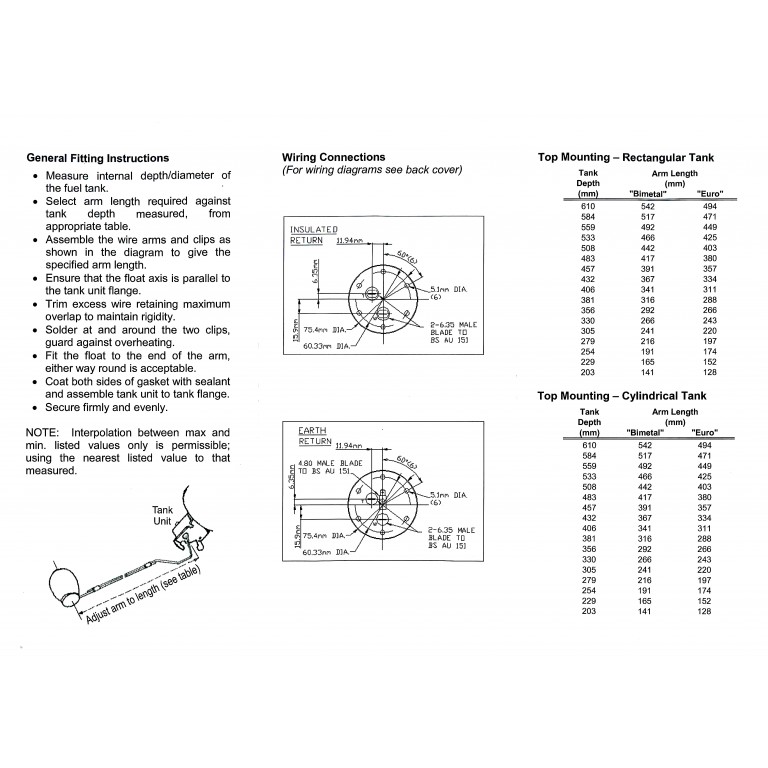

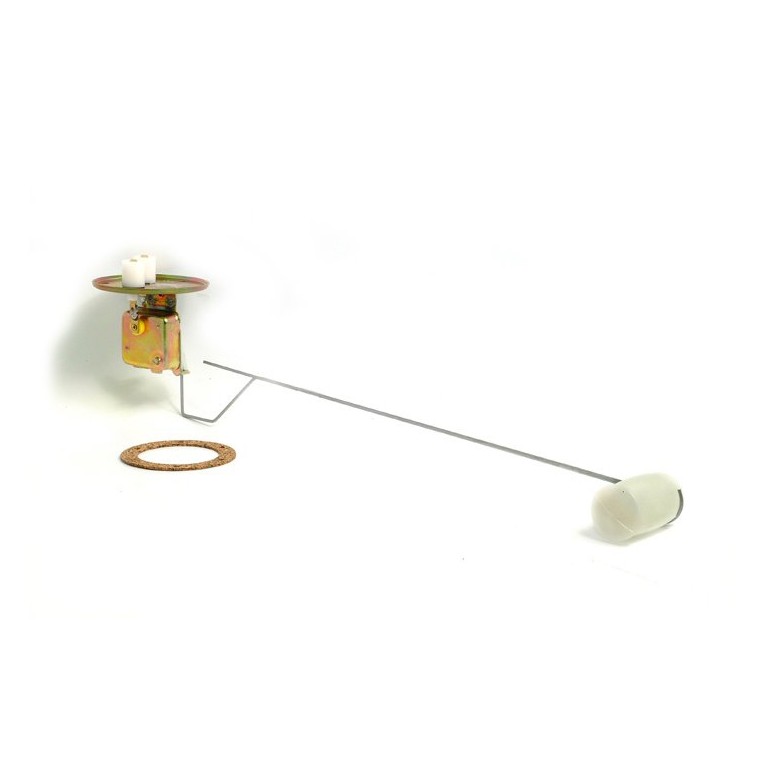

Top Mounting. Standard SMITHS fitting six holes 5.08 mm diameter on 60.33 mm pitch circle diameter. Gasket supplied. The arm length is adjustable for rectangular and cylindrical tanks of depths/diameters between 203 mm and 610 mm. After adjustment the arm is secured by soldering. Fitting and wiring instructions are provided. You will need to run a wire from the Sender to earth. For use with Smiths Classic Fuel Gauges. 12 volt. Resistance 237/273 at empty, 16/22 at full.
